System for function testing the RSF screwdriving, feed or control systems

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information
Unblock content Accept required service and unblock content

System for function testing the RSF screwdriving, feed or control systems The testing cell is used during maintenance work to ensure the quality level of our RSF systems.

The function testing system consists of a cell with a control panel and is designed for the following components and tests:

  • Screwdriving tests, torque tests and force measurements of the axial force of the bit stroke and the downholder can be carried out with the RSF25 screwdriving spindles.
  • The ZEL1350 feeder can be tested in conjunction with the screwdriving spindle and the controller in a continuous cycle.
  • A function test of the RSF controller C50S can be carried out.
Go to the brochures

Innovative product features

Torque measurement using a contrast sensor
Force measurement device
Test sheet holder (continuous cycle)
Torque measurement
Continuous cycle position

Features

  • Defined, reproducible test process
  • Direct OK/NOK evaluation
  • Automated output of a detailed test report
  • Different test scenarios can be selected and deselected individually

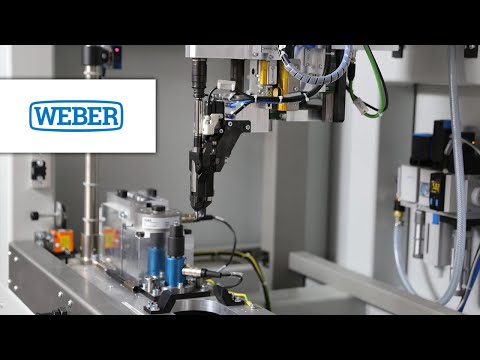

RSF test cell application WEBER

Pictures System for function testing
