Setting system for sandwich structures TSS

Thermal adhesive bond

Following the trend to lightweight construction, breaking new ground in connection technology is essential. The TSS system allows placing of plastic bosses in sandwich structures, which consist of a honeycomb or foam core with outer layers of fiber-reinforced plastics (e.g., CRP or GRP). During the TSS joining process, the plastic components are melted, creating a thermal adhesive bond. Placing the plastic bosses is carried out with or without a pilot hole and can be implemented with robotic assistance.

Setting system TSS WEBER
3D Preview 2D Preview
Thermal adhesive bond as connection technology
Honeycomb or foam core with outer layers of fiber-reinforced plastics
Individually adjustable process parameters with monitoring and evaluation
High resolution process evaluation

Individual parameters

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information
Unblock content Accept required service and unblock content

The TSS process is applied as a robot-assisted system or a closed setting facility in a cell. Domes are used directly as fasteners or robust threaded inserts for self-tapping screws. The entire process is freely configurable and can be documented.

Go to the brochures

Features

Linear unit for axial feed
Spindel for rotation movement
Relative path measurement system
Insertion tool for various connecting part geometries

Features

  • Joining process for lightweight materials
  • With and without pilot hole
  • Initial assessment of materials to be joined in WEBER’s in-house laboratory
  • The installation of plastic bosses in lightweight materials is possible with or without pre-hole
  • Feasibility study and evaluation of completed joints at the WEBER laboratory
  • For tasks with accessibility from one side only
  • Plastic bosses as fastening element or as usable fastening point for self-tapping screws

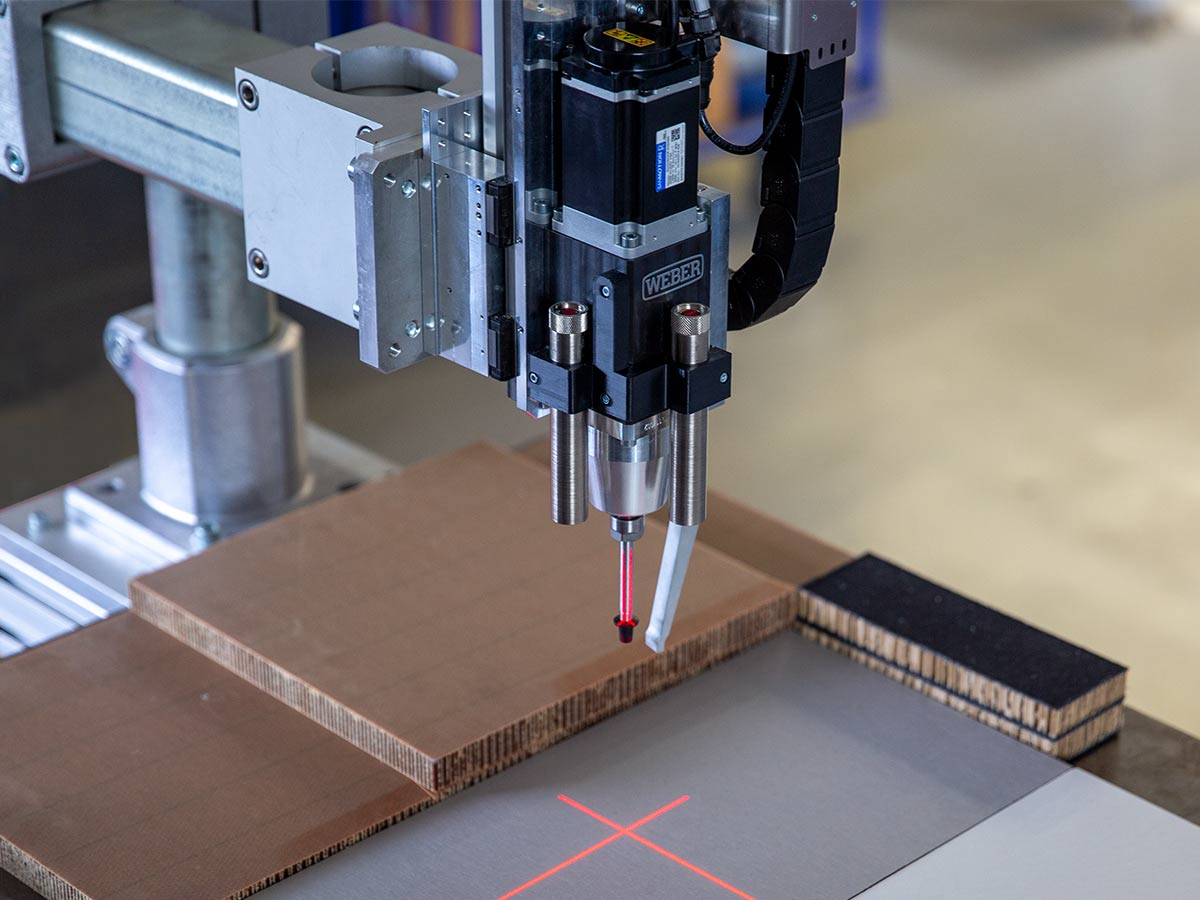

TSS Application WEBER

Technical data Setting system for sandwich structures TSS

TSS
Compact spindle design [mm] H x D x W 630 x 185 x 165
Spindle weight [kg] approx. 13
EC drive [rpm] up to 5.000
Max. axial force [N] 1.400
Cycle time (w/o cooling) [s] from 3
